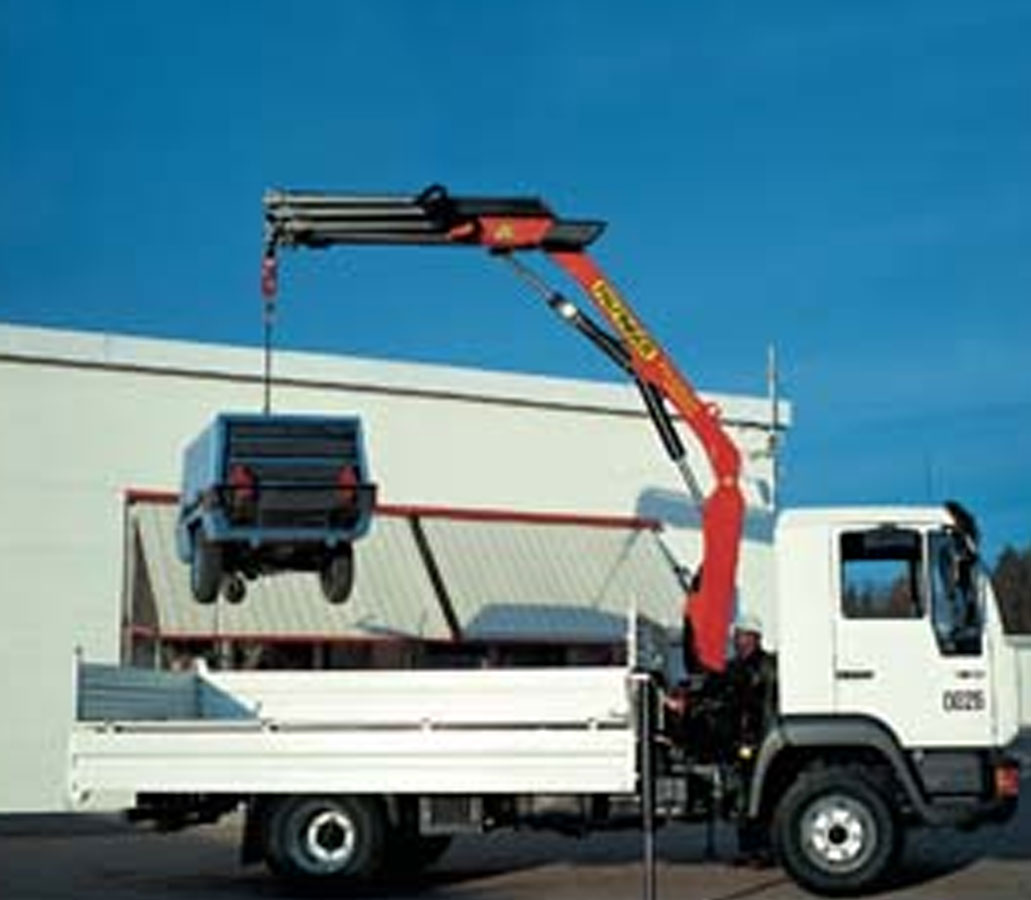

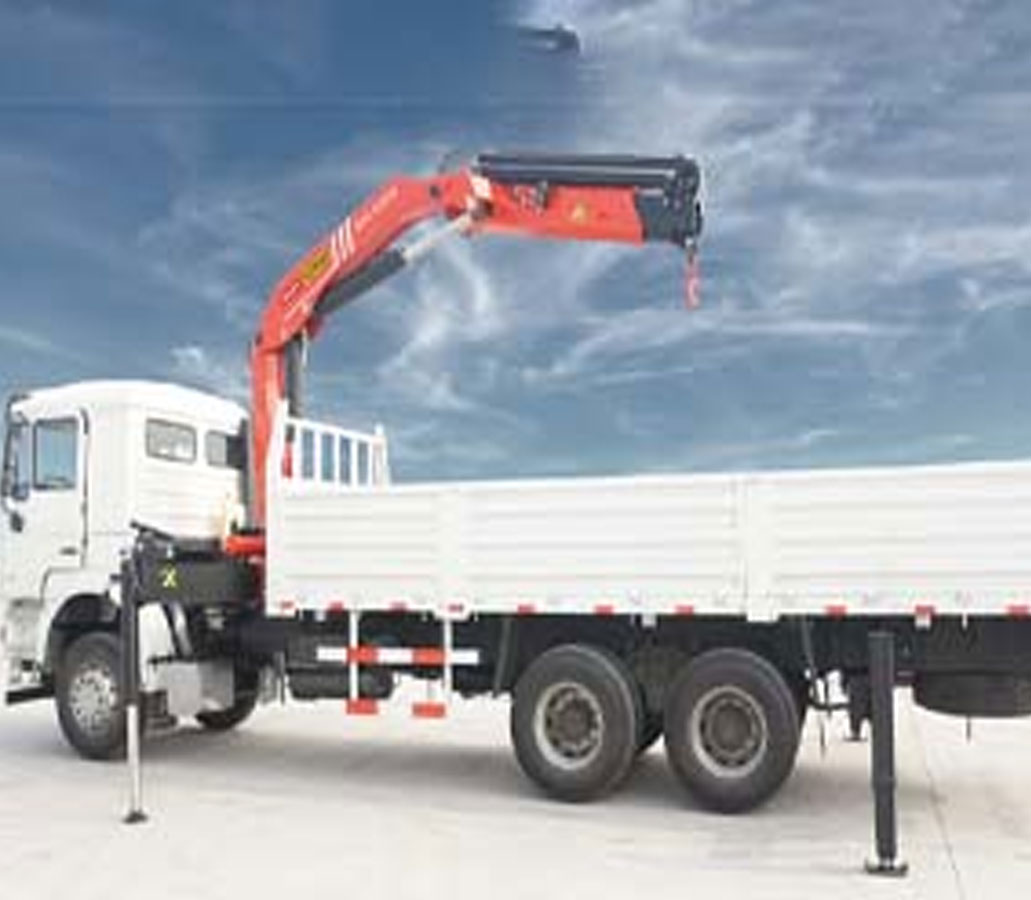

Pk (Palfinger Knuckle Boom Crane)

Palfinger

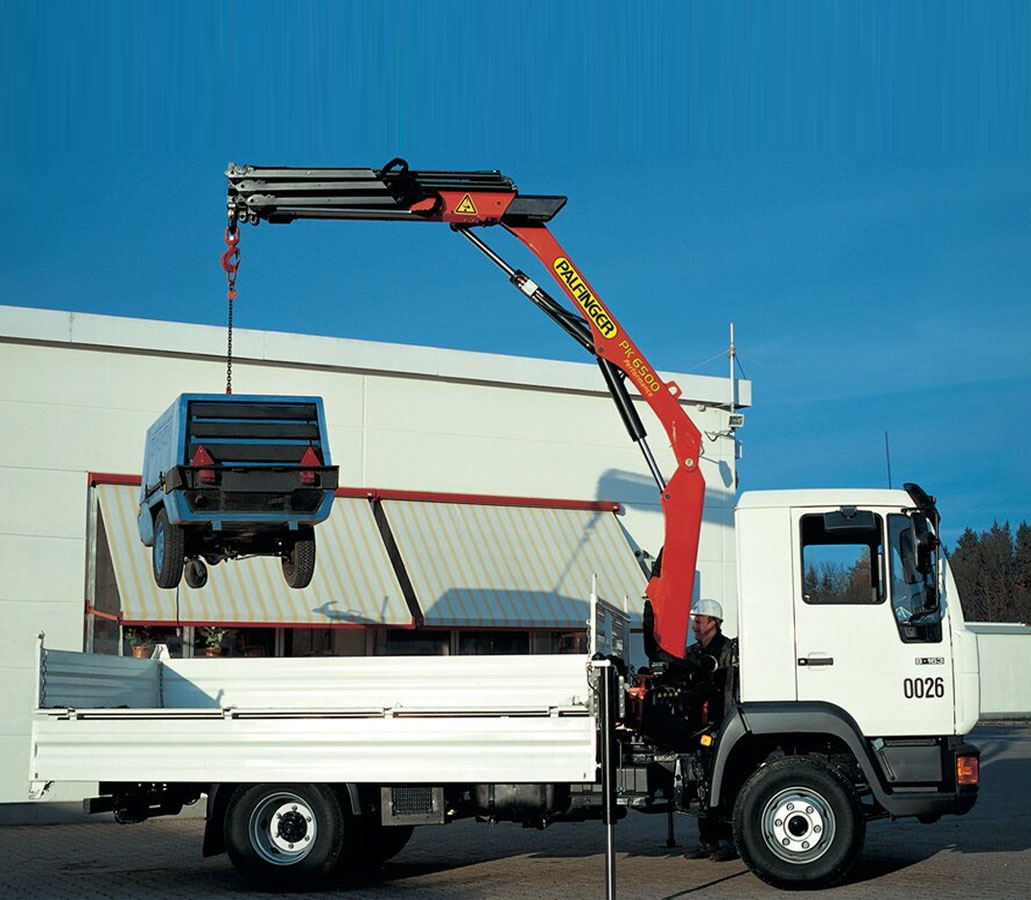

PK6500std

  • Lifting Moment : 5.8 mt
  • Max Lifting Capacity : 3,300 kg
  • Hydraulic Outreach : 9.6 m
  • Stabilizer Spread : 3.0 m to ~5.0 m (optional)
  • Slewing Angle / Torque : 400°
  • Operating Pressure / Flow : 315 bar
  • Dead Weight (Standard) : 708 kg





Know More Download Brochure
Palfinger

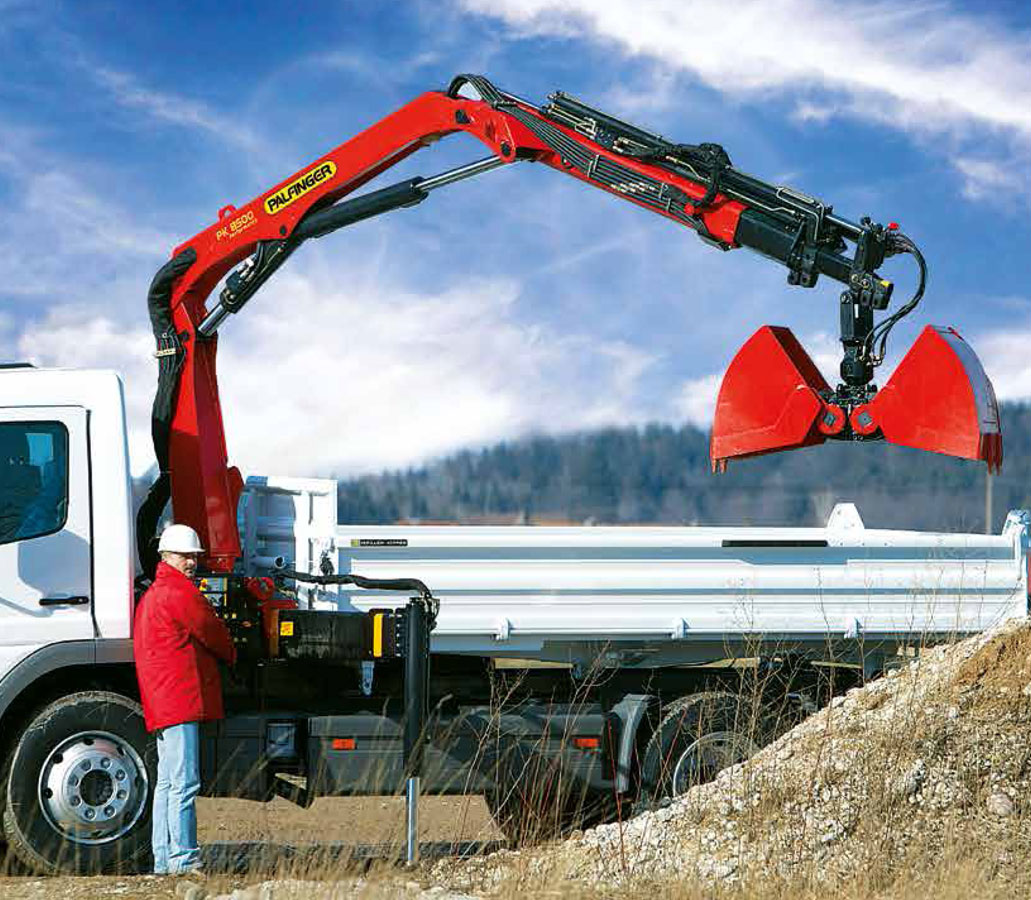

PK8500 Standard Boom-A (Knuckle Boom Crane)

  • Product Name : Standard Boom-A (Knuckle Boom Crane)
  • Maximum Lifting Moment : 7.6 meters
  • Lifting Capacity : 1800-1900 kg
  • Lifting Height : 4.0 to 13.1 meters
  • Maximum Outreach : 5.7 meters
  • Gross Vehicle Weight (GVW) : 9 tons with a 4200 mm wheelbase
  • Hydraulic Outreach : Up to 5.6 meters



Know More Download Brochure
Palfinger


PK10000 Knuckle Boom Crane (Standard Boom A & B)

  • Product Name : Knuckle Boom Crane (Standard Boom A & B)
  • Maximum Lifting Moment : 4.4 to 12.2 meters (12.2 to 16.3 meters - manual)
  • Lifting Capacity : 5300-5700 kg
  • Lifting Height : 4.0 to 13.1 meters
  • Maximum Outreach : 12.4 meters (16.2 meters - manual)
  • Gross Vehicle Weight (GVW) : 14 to 16 tons with a 4200 mm wheelbase
  • Hydraulic Outreach : Up to 6 meters

Know More Download Brochure
Palfinger

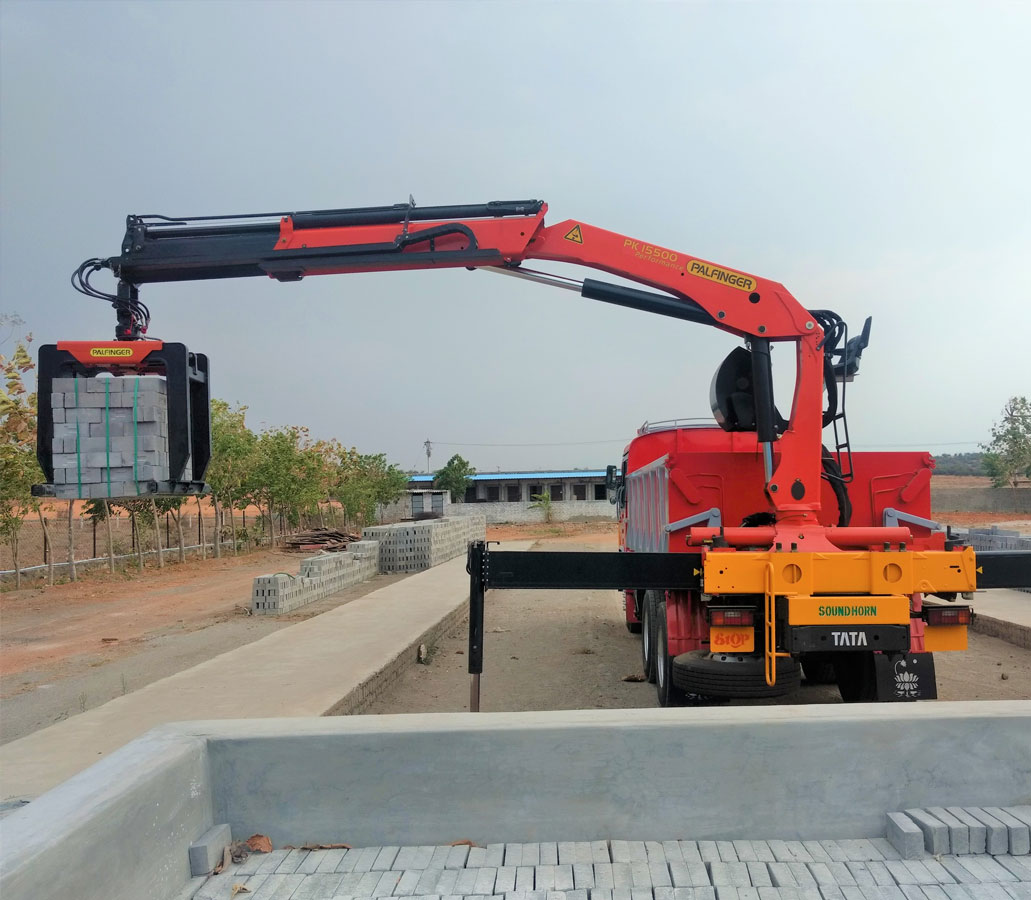

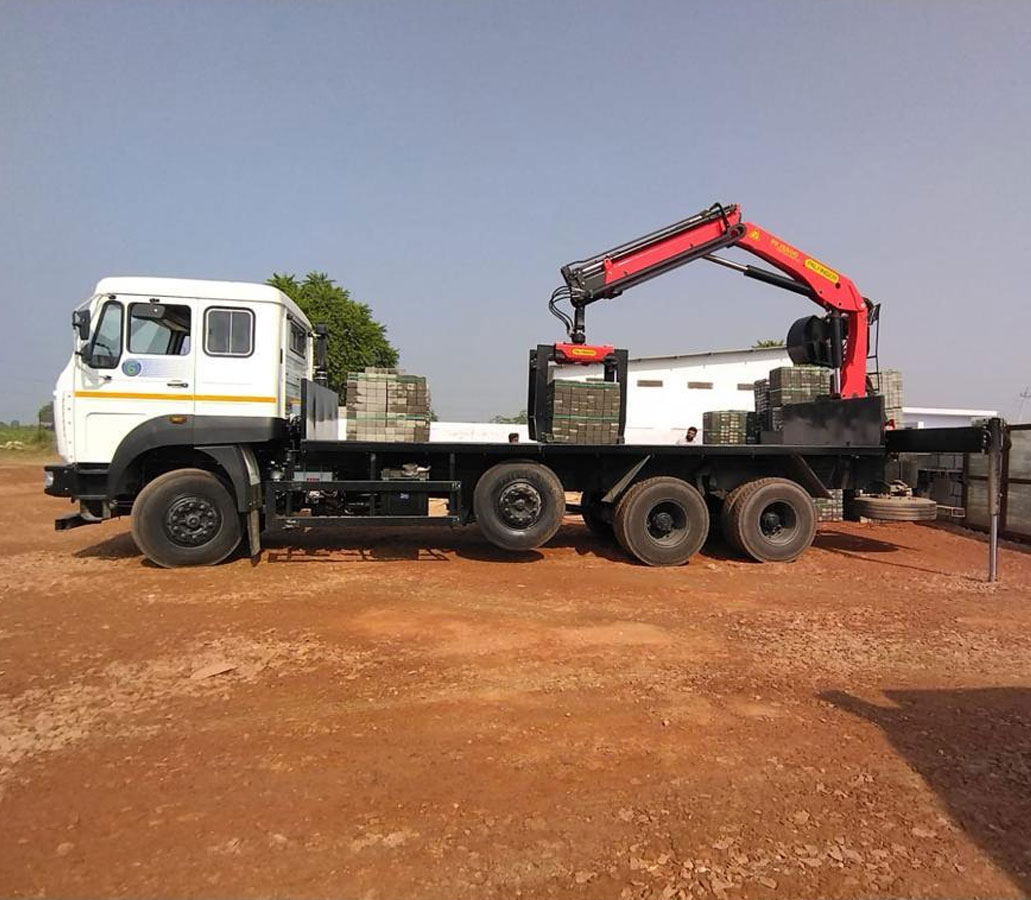

PK15500A Knuckle Boom Crane with Brick Grab

  • Product Name : Knuckle Boom Crane with Brick Grab
  • Maximum Lifting Moment : 14.6 meters
  • Lifting Capacity : 6200 kg (Standard Boom)
  • Lifting Capacity : 6200 kg (Standard Boom)
  • Gross Vehicle Weight (GVW) : 28 tons with a 5200 mm wheelbase
  • Hydraulic Outreach : Up to 8 meters


Know More Download Brochure
Palfinger


PK10000 Standard Knuckle Boom Crane with Brick Grab

  • Product Name : Standard Knuckle Boom Crane with Brick Grab
  • Maximum Lifting Moment : 6.0 to 9.5 meters
  • Lifting Capacity : 1000 kg
  • Maximum Lifting Outreach : Not specified
  • Gross Vehicle Weight (GVW) : 16 tons with a 4800 mm wheelbase
  • Hydraulic Outreach : Up to 6 meters


Know More Download Brochure
Palfinger

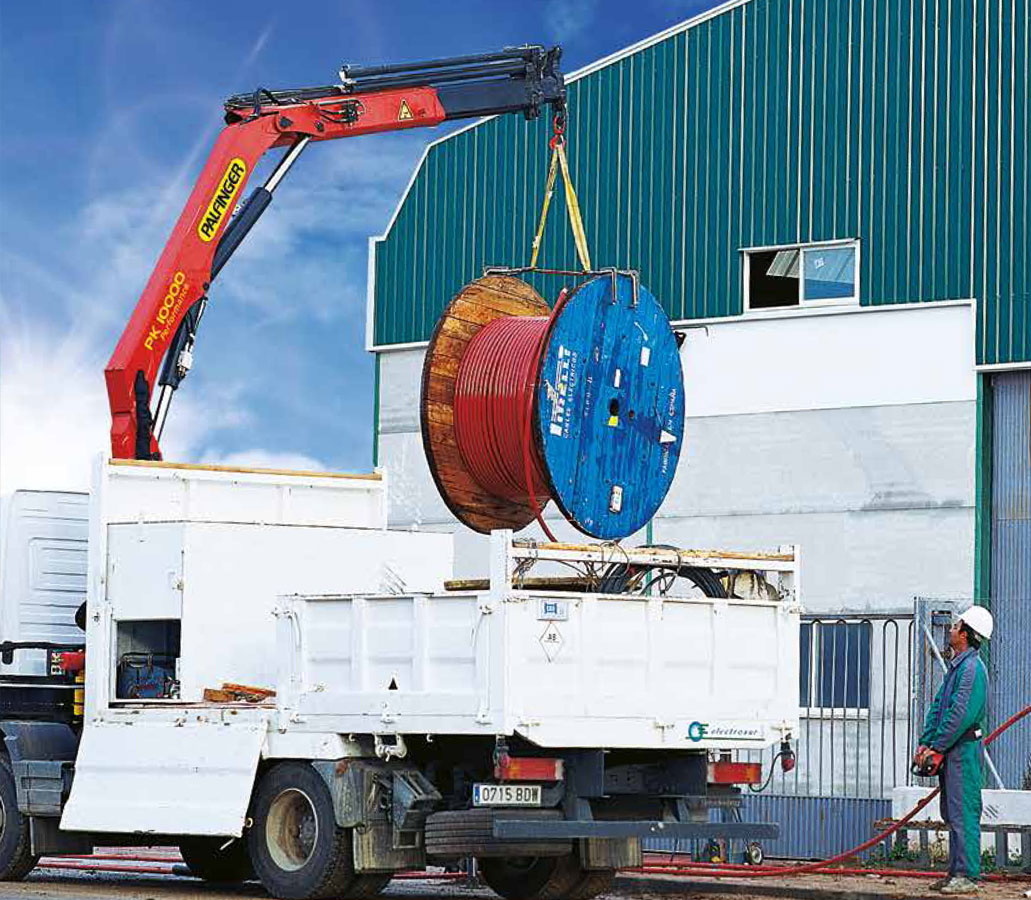

PK/SPK10000std

  • Product Name :  Knuckle Boom crane
  • Max. Lifting Moment :  9.5Mtr
  • Max. Lifting Capacity :  5700 KG
  • Max. Outreach :  12.4 Mtr
  • GVW :  14 to 16 Ton With WB 4200 mm








Know More Download Brochure
Palfinger

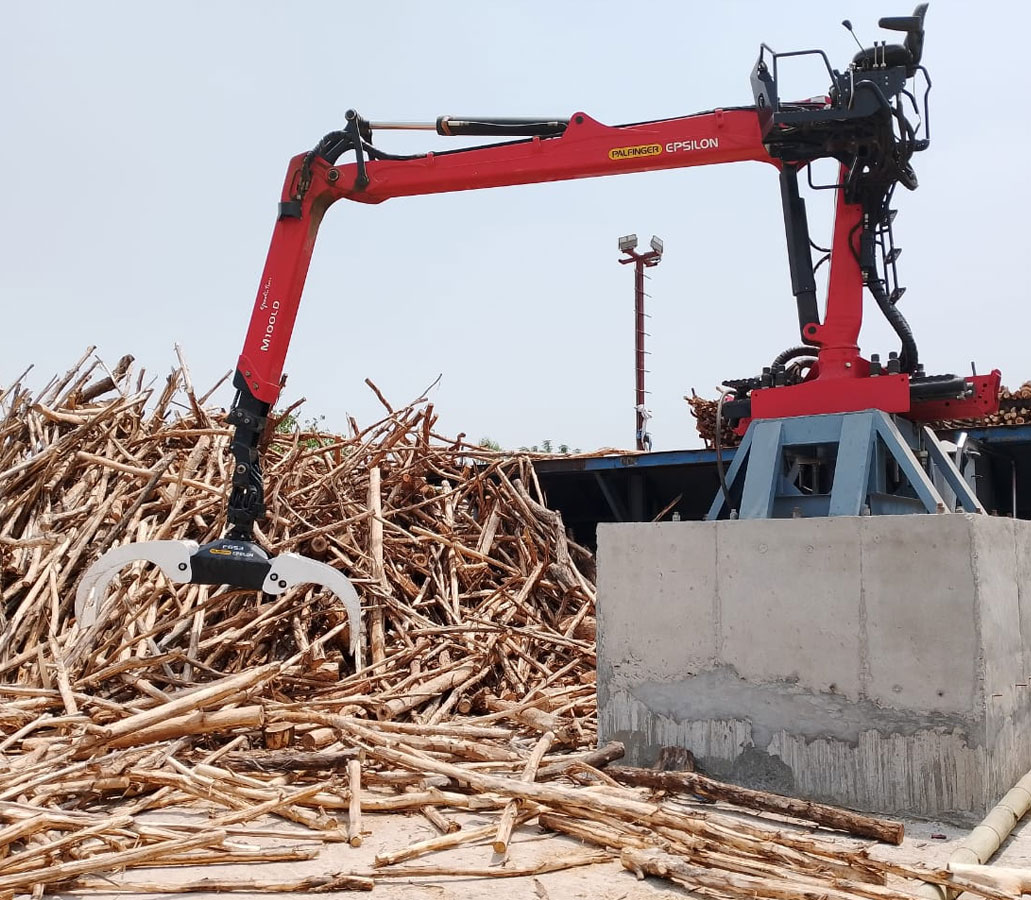

M100LD83

  • Crane type : EPSILON
  • Lifting moment net [k Nm] : 95
  • Slewing torque net [k Nm] : 24
  • Slewing angle [·] : 425
  • Max. outreach [m] : 8.3
  • Operating pressure [bar] : 215
  • Dead weight [kg] : 1850
Know More Download Brochure
Palfinger

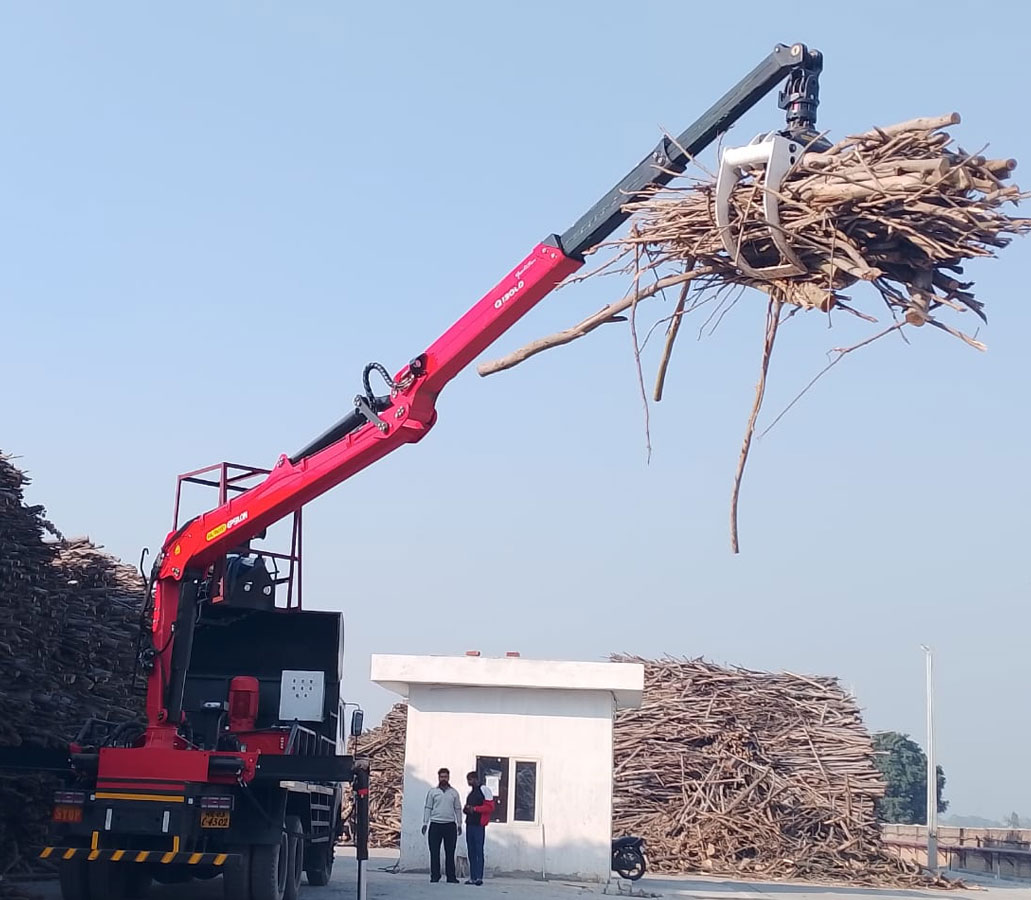

Model - Q130LD104

  • Load Moment : 111 k Nm
  • Maximum Reach : 10.4 m
  • Max Carrying Capacity : 800kg  at 10 m
  • Slewing Torque : 30 K Nm
  • Slewing Angle : 425
  • Operating Pressure : 210 bar
  • Weight (with seat) : 2600 kg
Know More Download Brochure
Palfinger

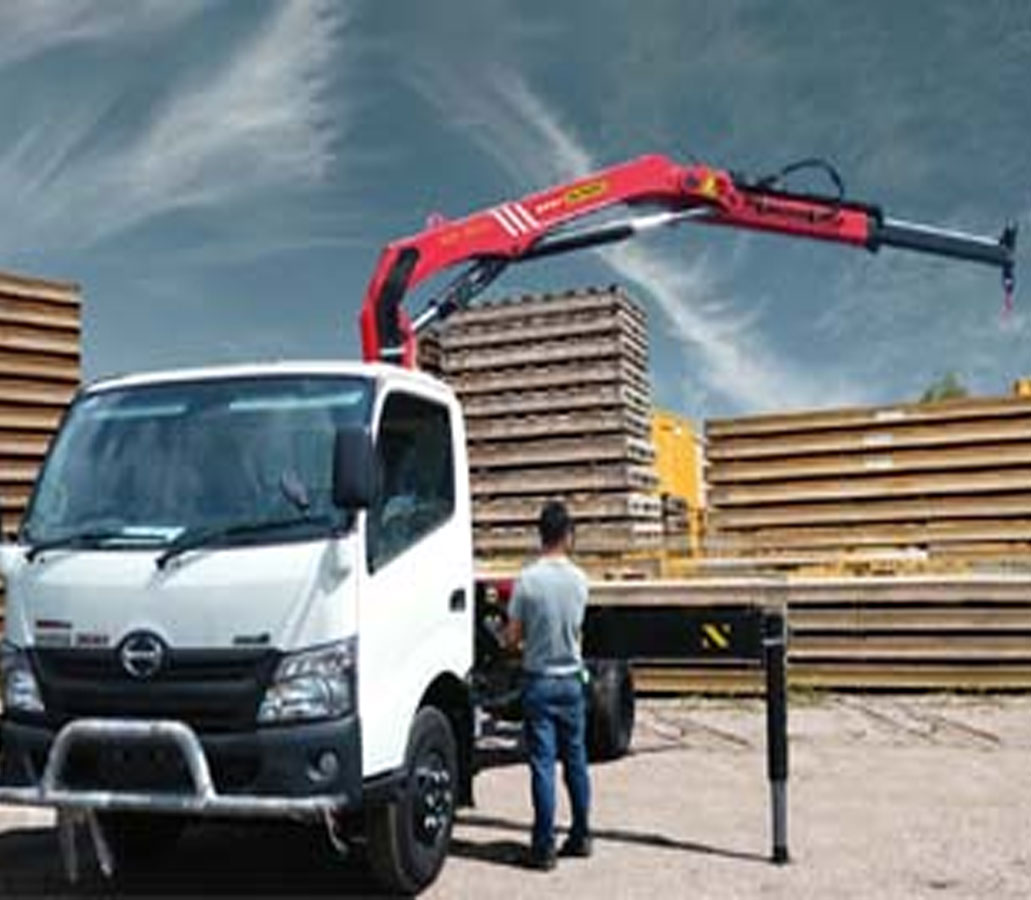

Spk (Palfinger Knuckle Boom Crane)

Palfinger


Spk Palfinger Knuckle Boom Crane

  • Product Name : Knuckle Boom Crane with Hook
  • Maximum Lifting Moment : 14.6 meters
  • Lifting Capacity : 6200 kg (Standard Boom)
  • Maximum Lifting Outreach : 14.5 meters
  • Manual Outreach : 18.7 meters
  • Gross Vehicle Weight (GVW) : 19 tons with a 5300 mm wheelbase
  • Hydraulic Outreach : Up to 10.1 meters
Know More Download Brochure
Palfinger

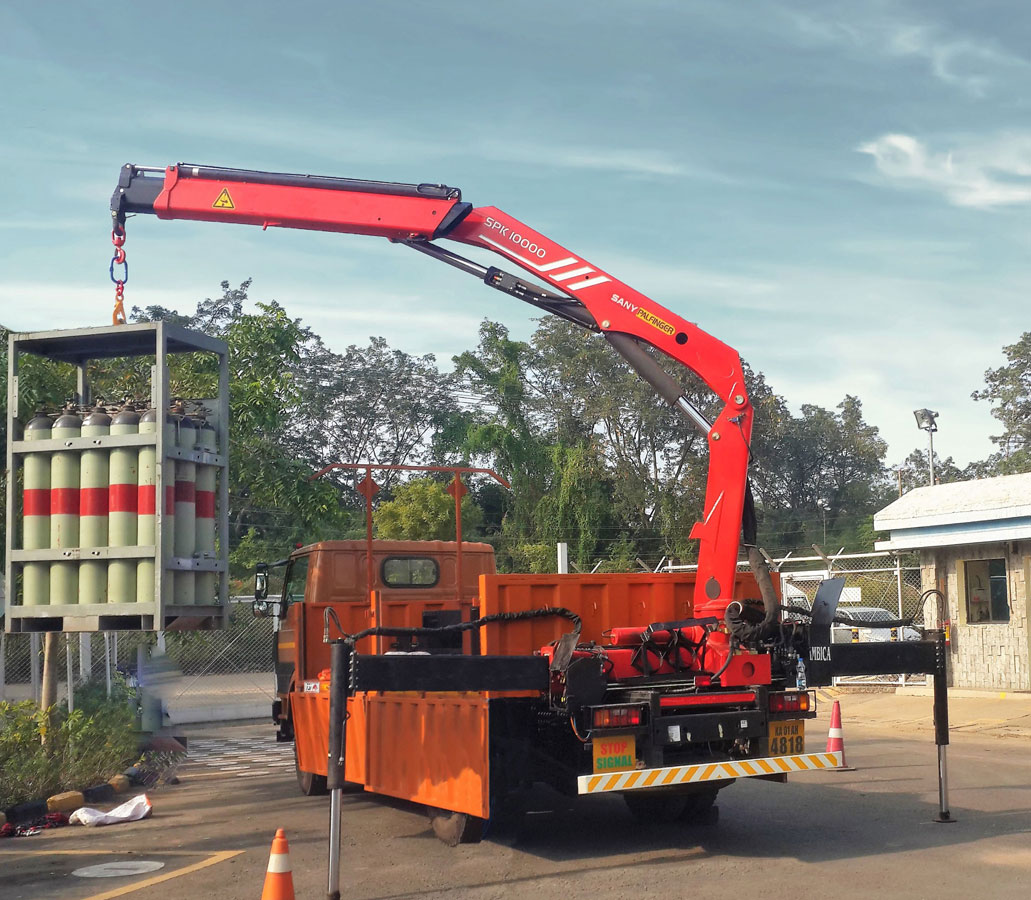

SPK 10000 Knuckle Boom Crane

  • Product Name : Knuckle Boom crane
  • Max. Lifting Moment : 9.5 Mtr.
  • Max. Lifting Capacity : 6m at 1000 kg
  • Max. Outreach : 12.4 Mtr
  • GVW : 16 Ton GVW With WB 4800 mm






Know More Download Brochure
Palfinger

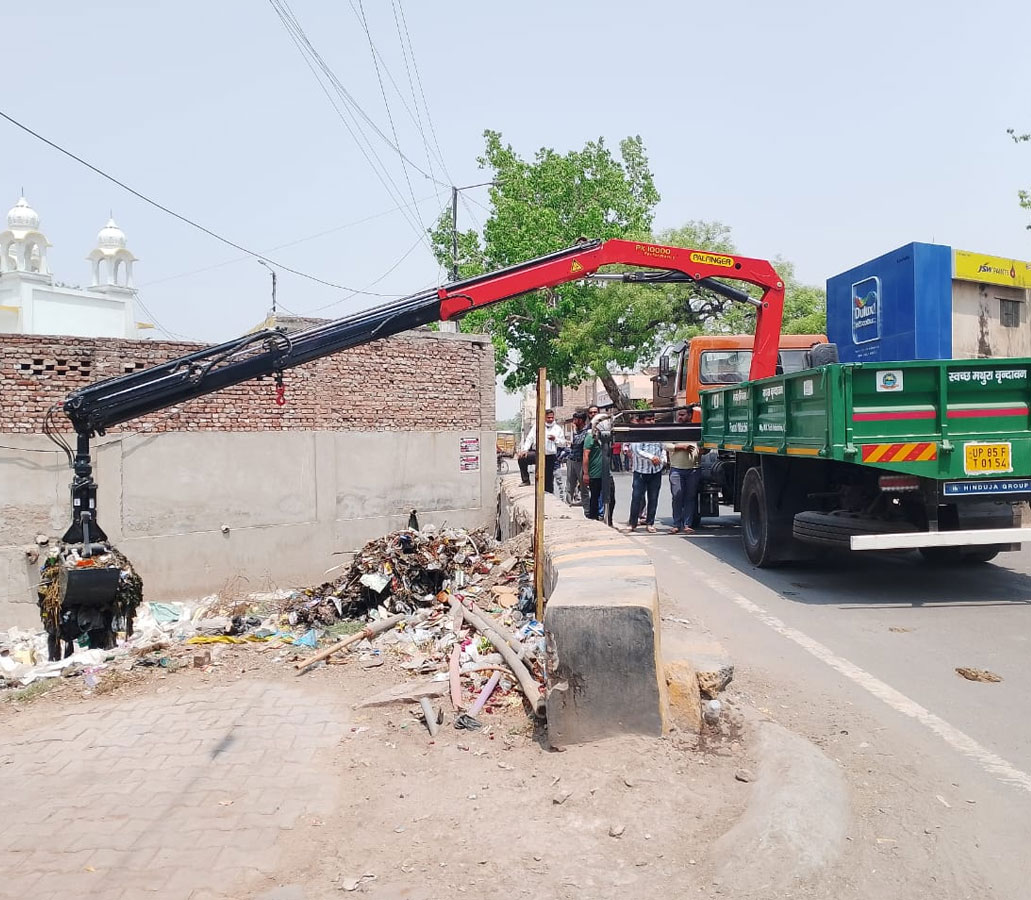

PK/SPK10000std with Clamshell Bucket

  • Product Name : Knuckle Boom crane
  • Max. Lifting Moment : 9.5 Mtr.
  • Max. Lifting Capacity : 600kg at 12.2mtr
  • Max. Outreach : 12.4 Mtr
  • Clamshell bucket : 250ltr
  • GVW : 16 Ton GVW With WB 4800 mm




Know More Download Brochure
Palfinger


SPK/PK15500A with Brick Grab

  • Product Name :  Knuckle Boom crane
  • Max. Lifting Moment :  14.6 Mtr.
  • Max. Hydraulic Outreach :  8 meter
  • Max. Lifting Capacity : 6m at 1500kg , 8m at 1290 kg
  • GVW : 28 Ton GVW With WB 5200 mm







Know More Download Brochure
Palfinger

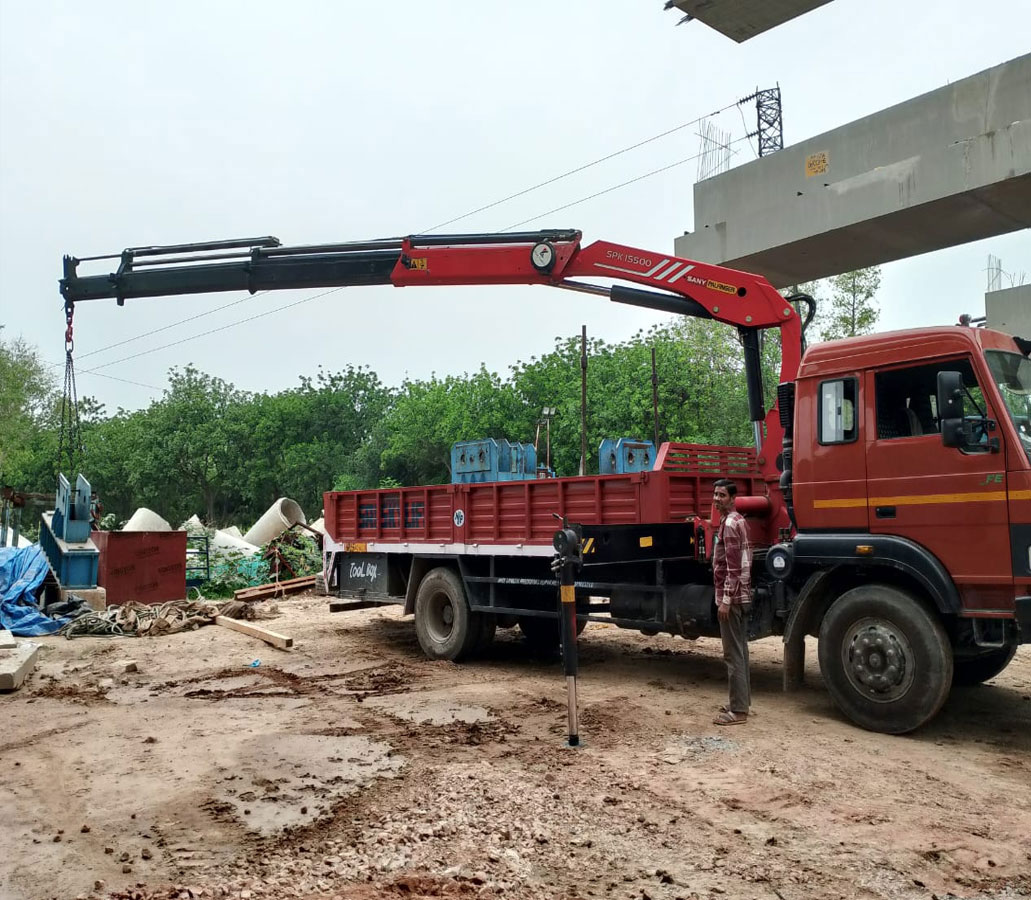

SPK/PK15500B

  • Product type : Knuckle boom Crane
  • Max lifting moment : 14.6 mtr
  • Max lifting capacity : 6,200 kg
  • Max . Hydraulic outreach : 10.1  m
  • Slewing angle : 420°
  • Slewing torque : 1.8 mt
  • Stabilizer spread : standard ~4.6 m; max ~6.6 m
  • Operating pressure : 300 bar
  • Dead weight (without mounting parts, pump & oil) : 1,619 kg
  • Truck : 19 ton GVW with 5300 wheelbase

Know More Download Brochure
Palfinger

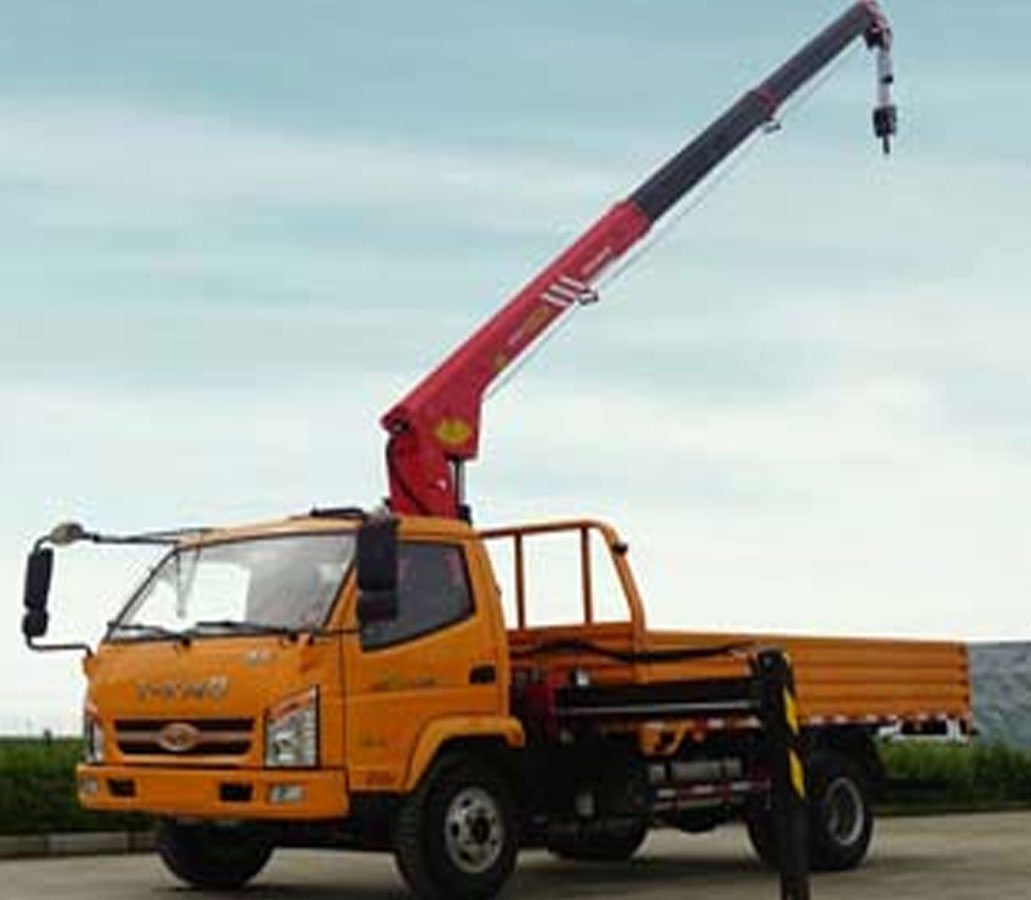

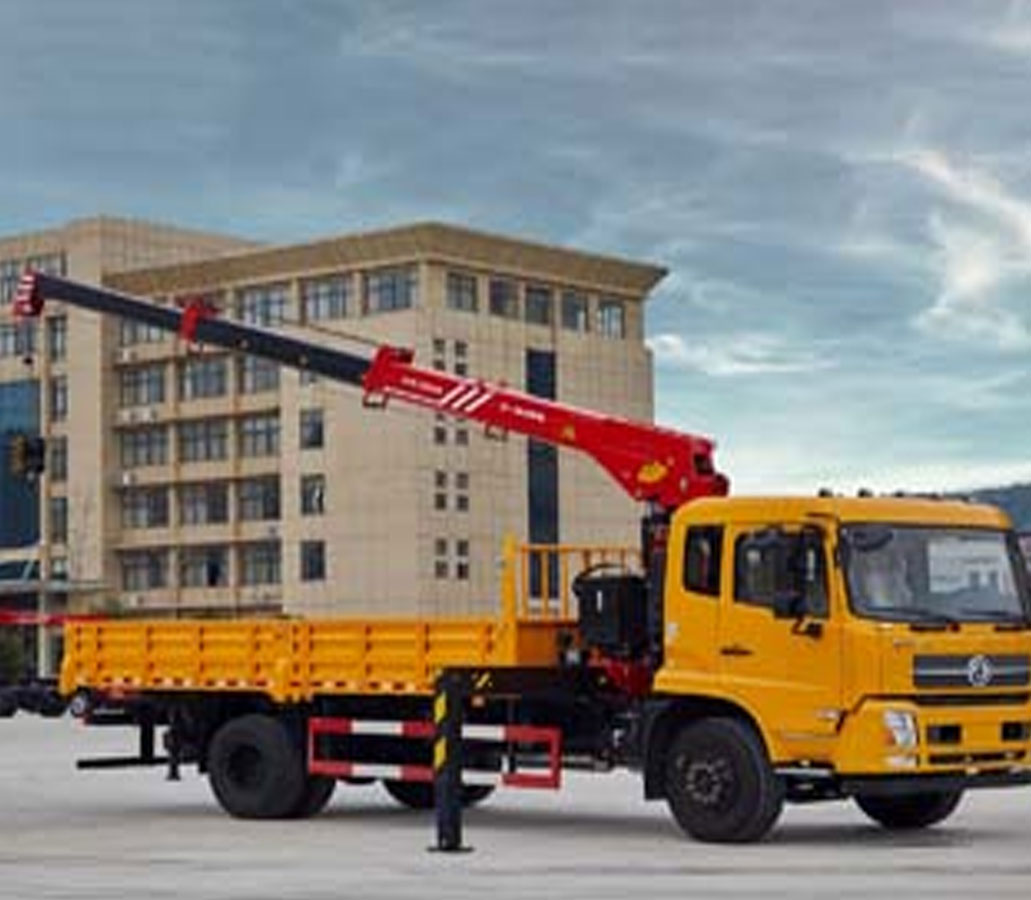

SPS (Truck Mounted Stiff Boom Crane)

Palfinger

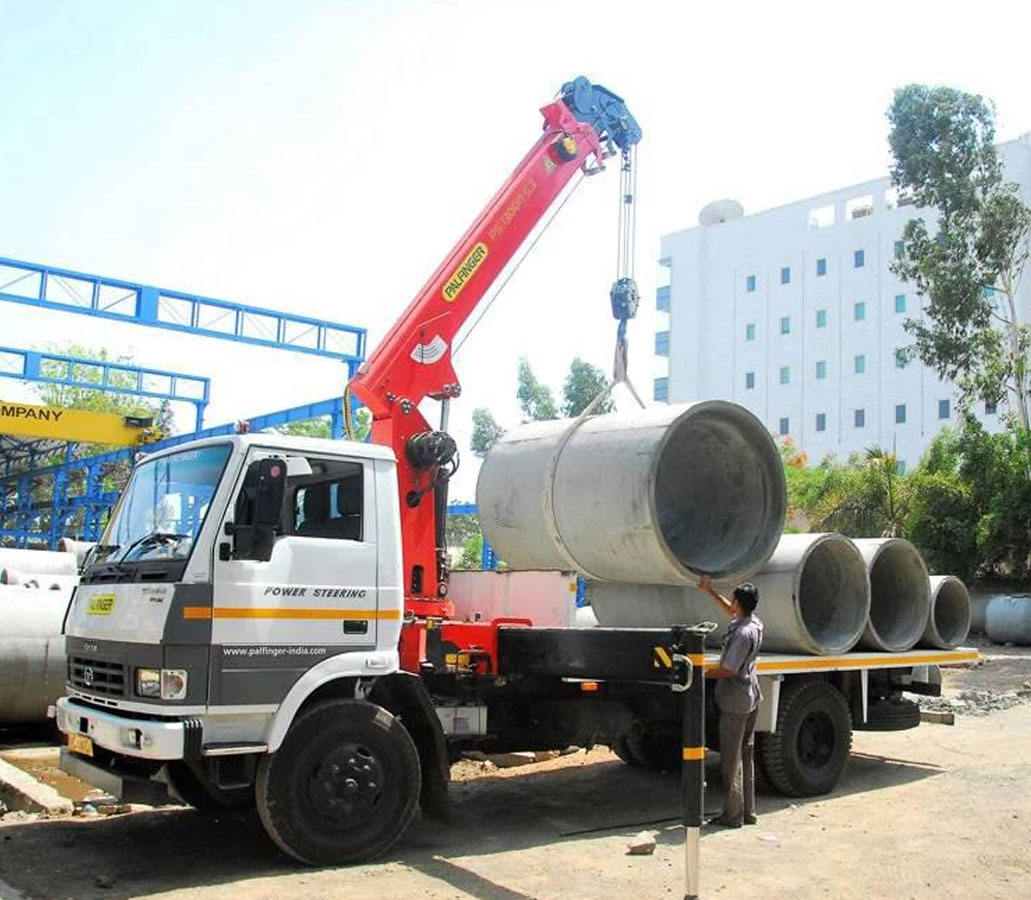

SPS 12500B Stiff Boom Crane

  • Product Name : Stiff Boom Crane
  • Maximum Lifting Moment : 12.6 meters
  • Lifting Capacity : 5000 kg (at 2.5 meters)
  • Maximum Lifting Outreach : 9.0 meters
  • Gross Vehicle Weight (GVW) : 19 tons with a 5300 mm wheelbase
  • Hydraulic Outreach : Up to 11.6 meters







Know More Download Brochure
Palfinger


SPS 8000A Stiff Boom Crane

  • Product Name : Stiff Boom Crane
  • Maximum Lifting Moment : 8.0 meters
  • Lifting Capacity : 3200 kg (at 2.5 meters)
  • Maximum Lifting Outreach : 7.8 meters
  • Gross Vehicle Weight (GVW) : 16 tons with a 4800 mm wheelbase
  • Hydraulic Outreach : Up to 8 meters







Know More Download Brochure
Palfinger


SPS 8000A SPS 8000B

  • Maximum outreach : 7.8 m 10.2 m
  • Maximum hook height : 9.8 m
  • Retracted boom length : 3.4 m 3.5 m
  • Extended boom length : 8.0 m 10.4 m
  • Boom sections : 3 4
  • Recommended flow rate : 30–40 L/min 30–40 L/min
  • Operating pressure : 25 MPa (250 bar)
  • Oil tank capacity : 100 L
  • Outrigger span (extended) : 4.4 m
  • Slewing angle Continuous (360°) : Continuous
  • Torsional moment : 8.4 kNm (0.9 mt)
  • Crane weight (floor control ) : 1,200 kg
Know More Download Brochure
Palfinger

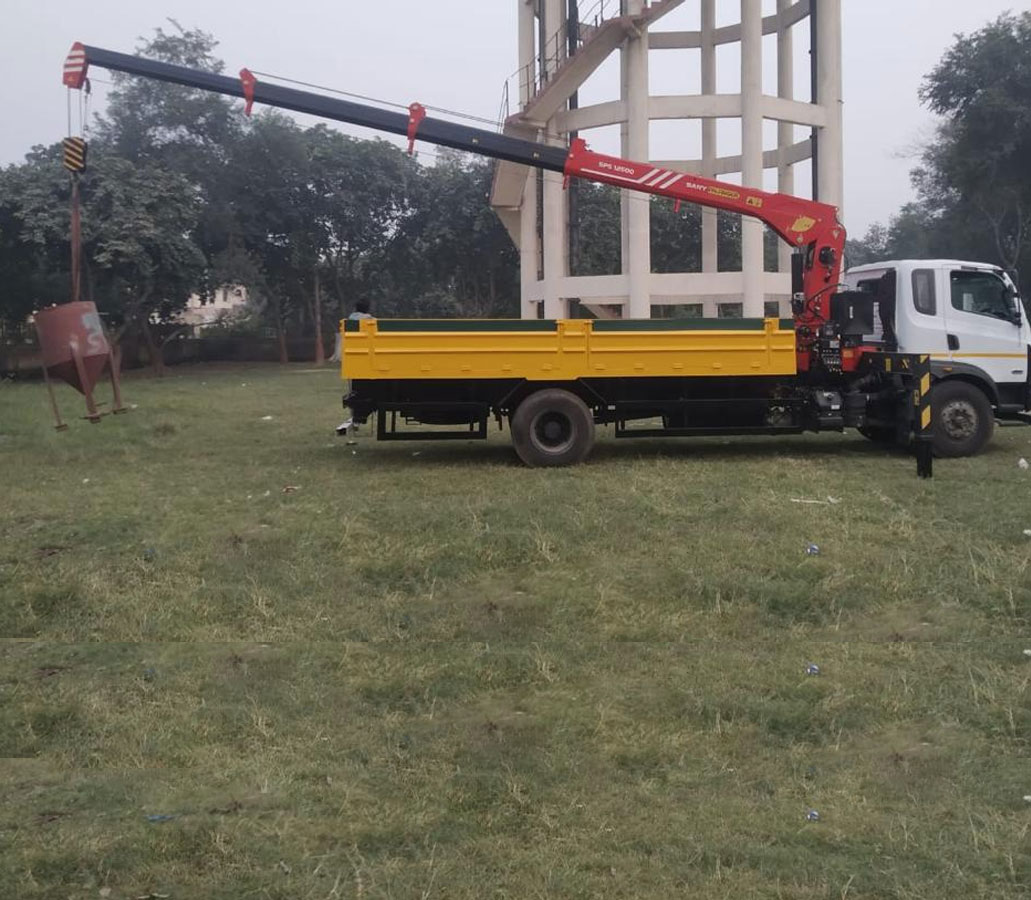

SPS12500B

  • Rated lifting moment : 12.5 mt
  • Max lifting capacity : 5,000 kg at 2.2 m
  • Boom sections : 4, achieving full extension length 11.9 m
  • Max hydraulic outreach : 11.6 m
  • Max lifting height (outrigger fully extended) : 13.6 m
  • Stabilizer spread (standard) : 5,100 mm
  • Operating pressure : 23–25 MPa (~230–250 bar)
  • Recommended pump flow : 35–50 L/min (some sources cite up to 55 L/min)
  • Crane weight (floor control) : 2,310 kg 1,200 kg
Know More Download Brochure
Palfinger

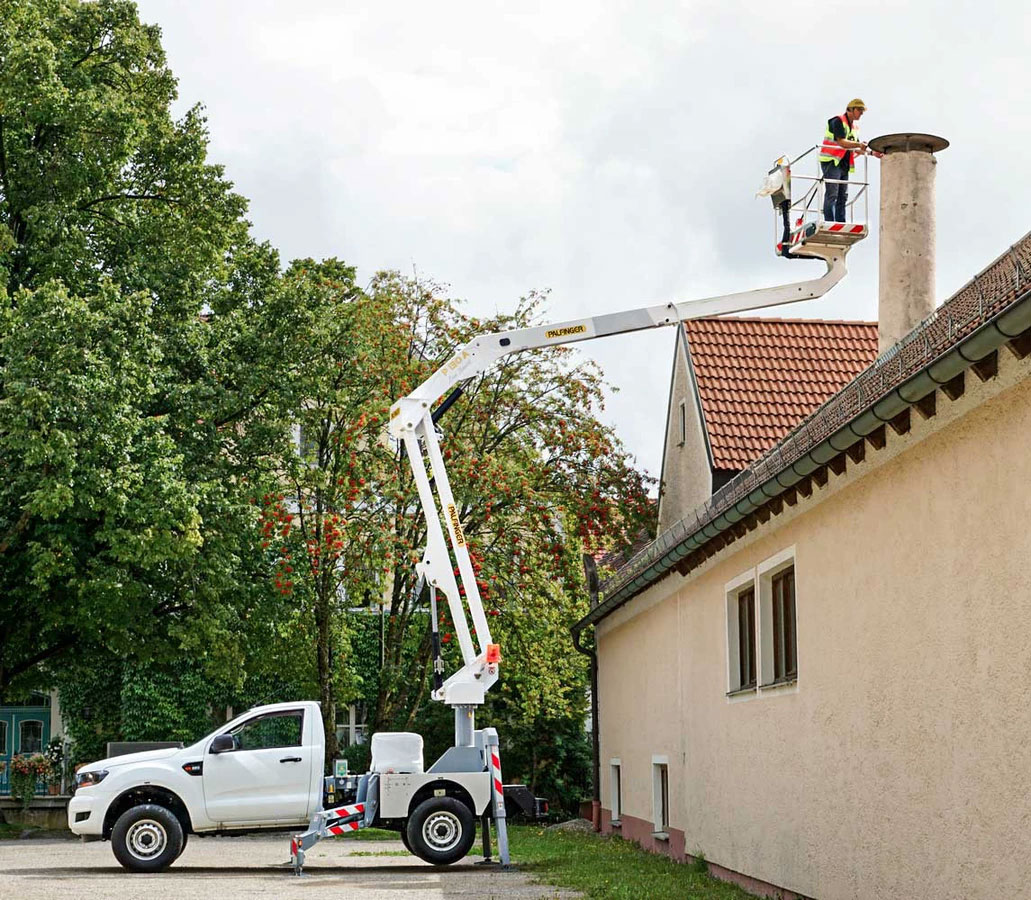

AWP (Truck Mounted Aerial Work Platform)

Palfinger


P130A Aerial Work Platform

  • Product Name : Arial Work Platform
  • Maximum Working Height : 13 meters
  • Maximum Outreach : 6.3 meters
  • Basket Capacity : 250 kg
  • Gross Vehicle Weight (GVW) : 3200 kg with a wheelbase of 3800 mm




Know More Download Brochure
Palfinger

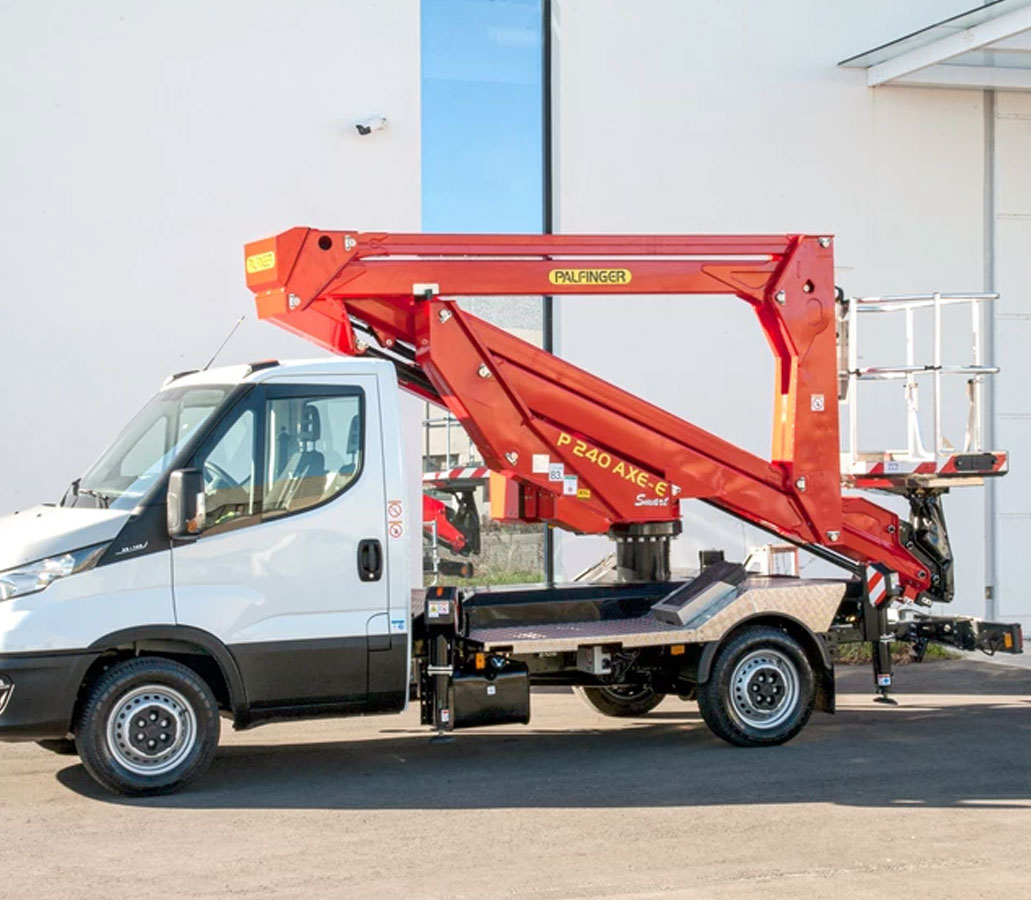

P240A Aerial Work Platform

  • Product Name : Aerial Work Platform
  • Maximum Working Height : 23.2 meters
  • Maximum Basket Bottom Height : 21.2 meters
  • Maximum Outreach : 10.7 meters
  • Basket Capacity : 230 kg
  • Gross Vehicle Weight (GVW) : 3350 kg with a wheelbase of 3800 mm wrong
  • Hydraulic Reach : Up to 24 meters

Know More Download Brochure
